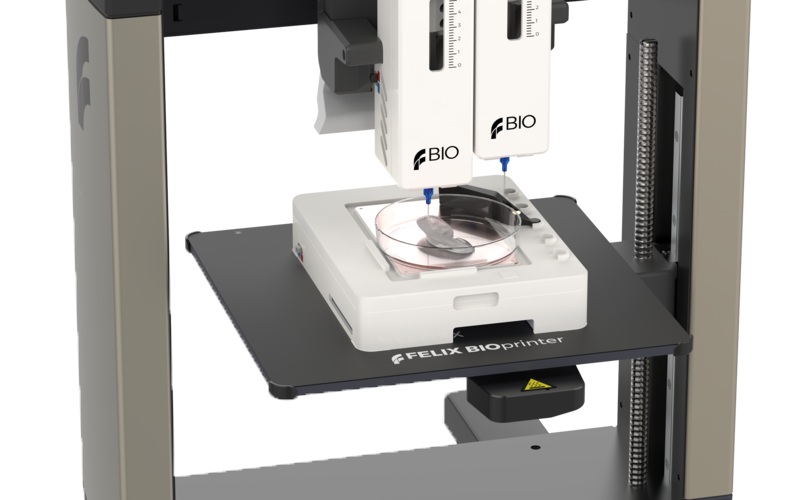

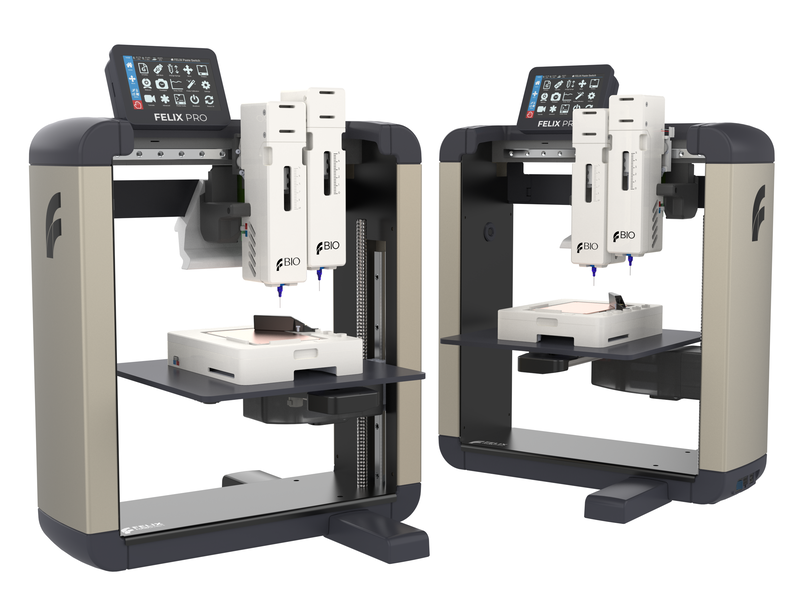

The FELIX BIOprinter, with dual head printing capability, is able to accurately and reliably print a wide range of bio-inks of various viscosities.
Customize your FELIX BIOprinter, with a choice of:

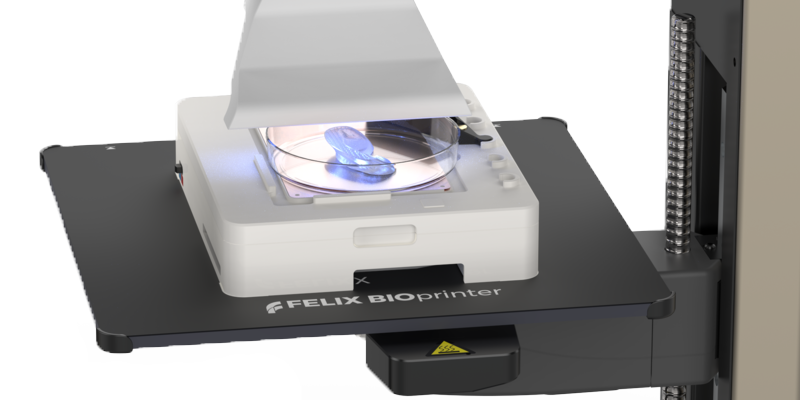

UV curing module

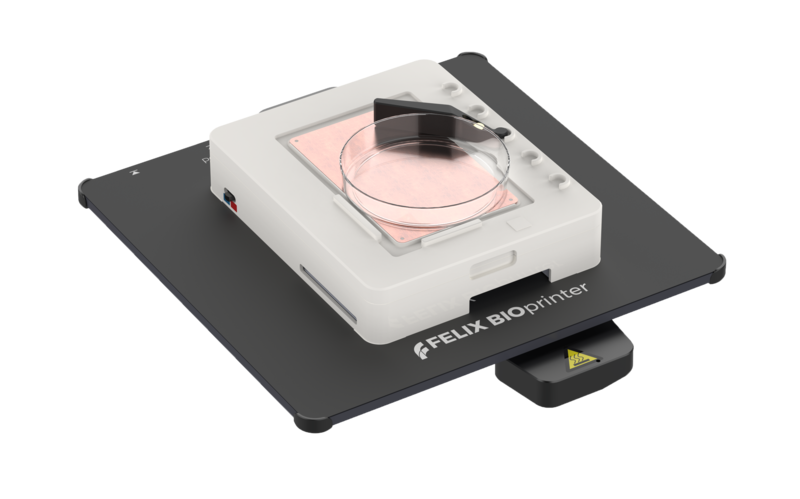

Specially designed bed plate holder
Cooled bed holder

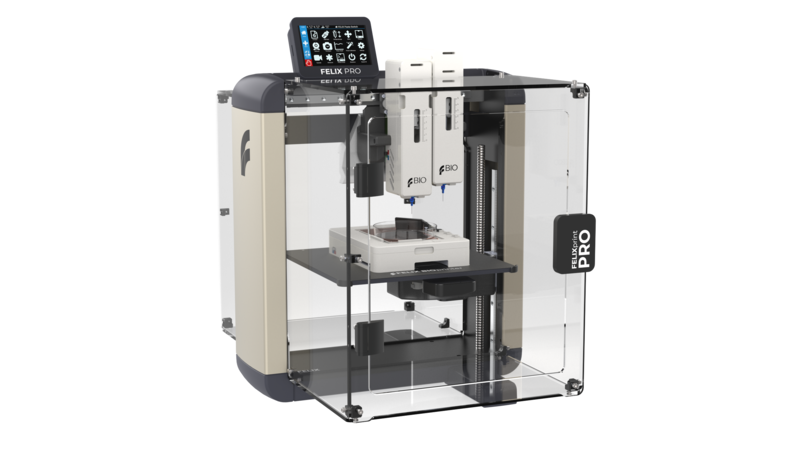

Cover unit for additional hygiene and physical protection of print jobs
The BIOprinter assists medical practitioners, researchers and scientists with medical and bio-research. Built on 10 years of quality 3D printer production experience, the FELIX BIOprinter is a trustworthy machine, with the aim to launch users to greater levels of successful bioprinting discovery and innovation
With the FELIX BIOprinter, you can print droplets, scaffolds, layers and whatever other requirements you might have.
The modular system allows you to use standard equipment such as 5ml Luer lock syringe, generally available Petri-dishes and wells and nozzles.
Printing can be done with a range of bio-inks.
An ideal tool to equip researchers to accomplish breakthroughs in the medical and scientific field.
Details
Layer Resolution: 20 to 50 microns
Build Plate: Aluminium sandwich plate with steel flexplate.

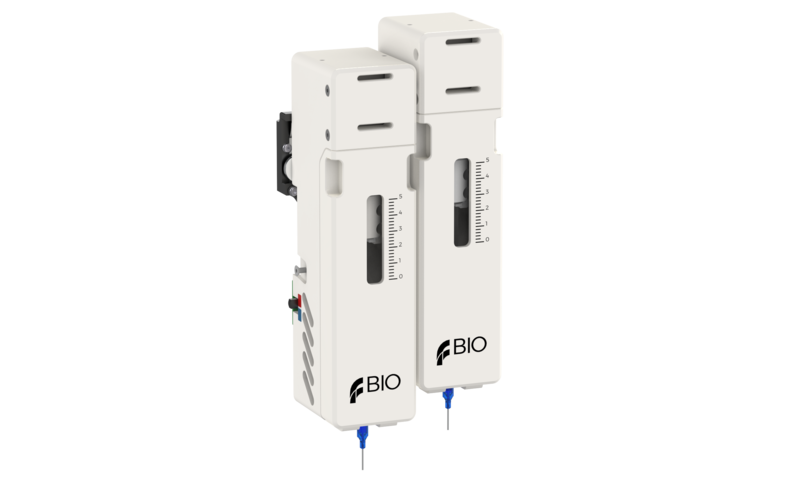

Print head: Dual syringe operation
Syringe Specs: 5 ml syringe(s)
Build Speed/s: Recommended build speed is 20 mm/s. Speed depends on material viscosity.
Typical print accuracy: ± 0.05 mm for sizes below 20 mm
Syringe Min/Max print temperatures: 0-50 ˚C
Syringe heat up time / cooling times: 10 seconds
Supported materials: Any type of bio-ink is supported, for various viscosities.
Features:
Automatic bed levelling

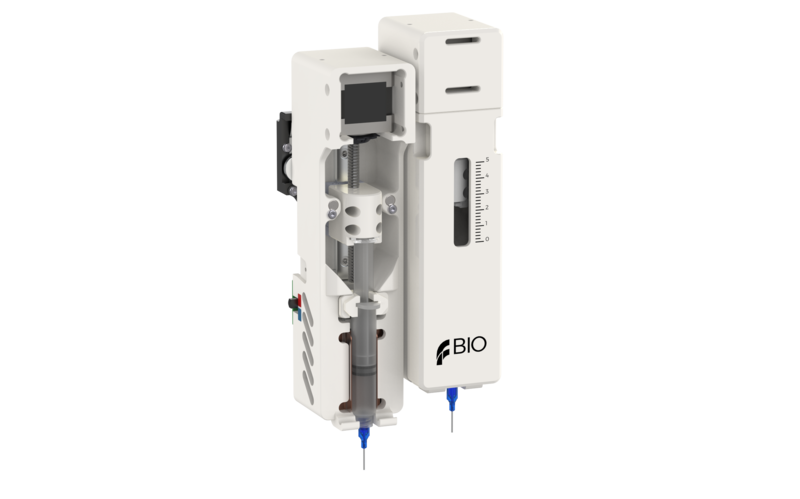

Easily detachable syringe housing cases
Connectivity
WiFi
USB-Flash Drive
USB-cable (host)

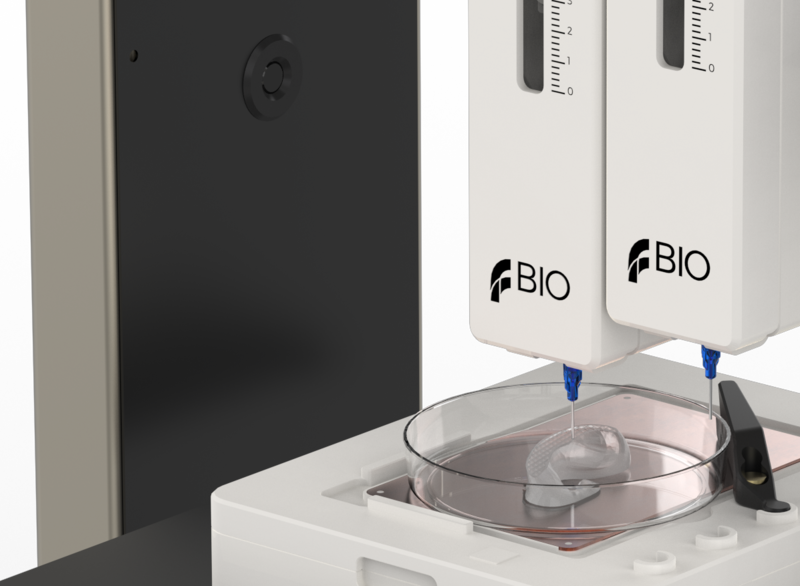

Webcam for online monitoring
Software
Recommended to use Simplify3D.
FELIX BIOprinter box includes:

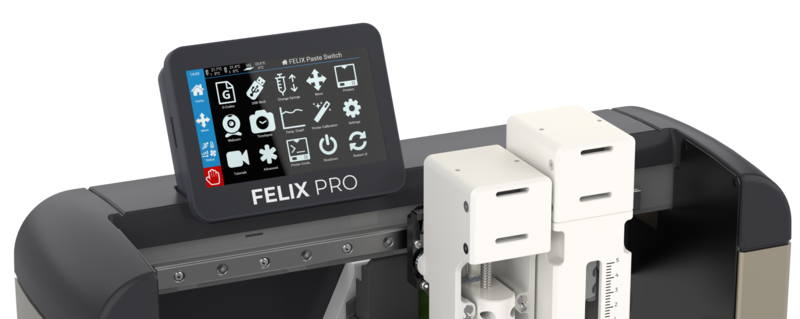

Felix BIOprinter3D printer, Foot with 2 bolts, Touchscreen unit, Small tool kit, Power Supply Unit, AC Power supply cord, USB cable, USB Flash Drive, 2 BIOprintering printhead holders for syringes, QuickStart Guide.
More Information
More Information
Printer Model
FELIX 3.1
Shipment
We ship worldwide and we chose UPS as our standard shipping partner. They have proven to provide high quality service, in our experience every package has arrived in time and most important without damage. Every shipment is insured and tracable, to eliminate the risk of losing your valuable package and or invested money. The shipping time varies from 1 to 4 days depending on your location in the world.
Orders placed before 13:00h CEST gets shipped out the same day if all items in your shopping cart are in stock. If you require any changes in the order, please notify us as soon as possible, to avoid any unnecessary handling costs.
NOTE: Some countries require regular EMS postal service due to strict customs regulations, an example country is Russia.
